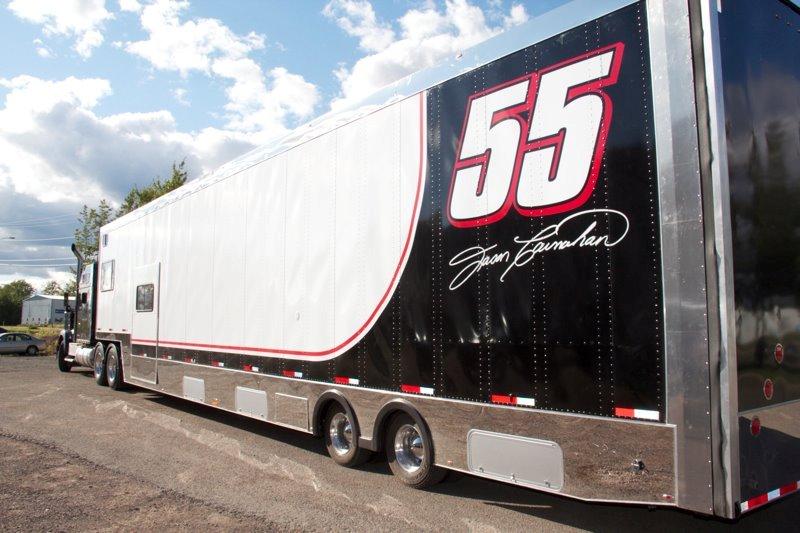

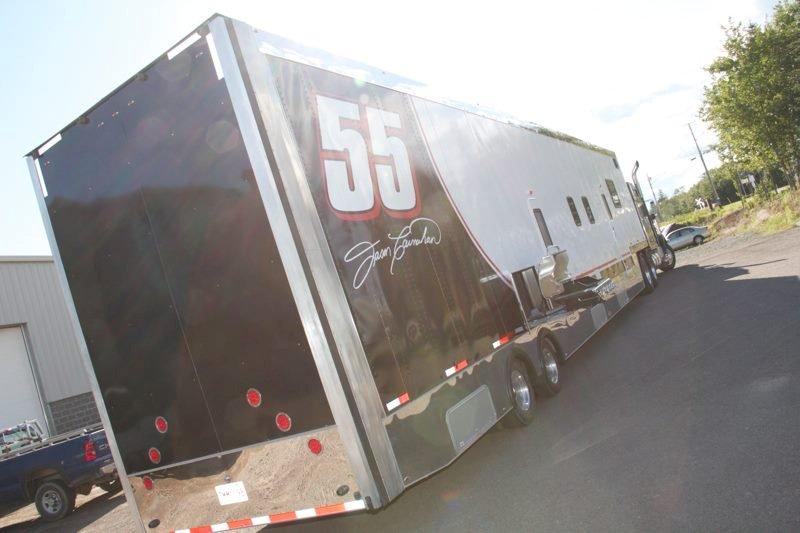

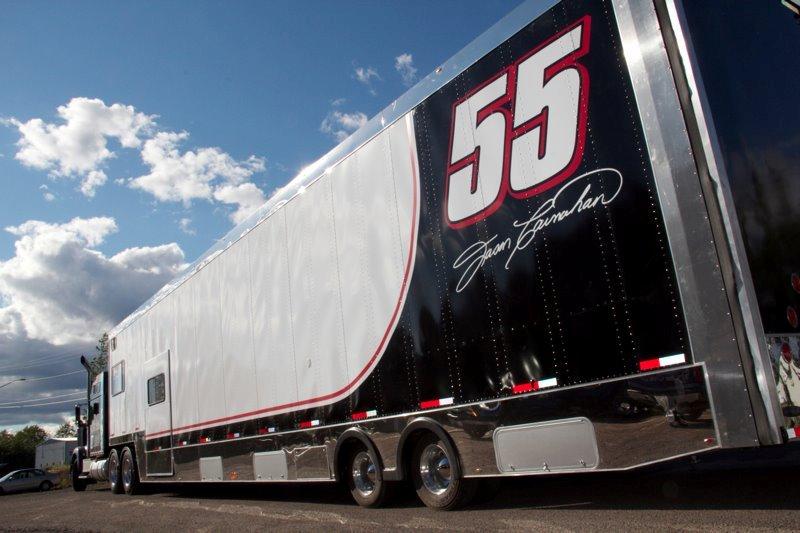

2000 53' Liftgate transporter with living quarters


Sold 2000 Re-man Chassis, (Trailer will last forever) August  2011 Conversion Completed TRAILER

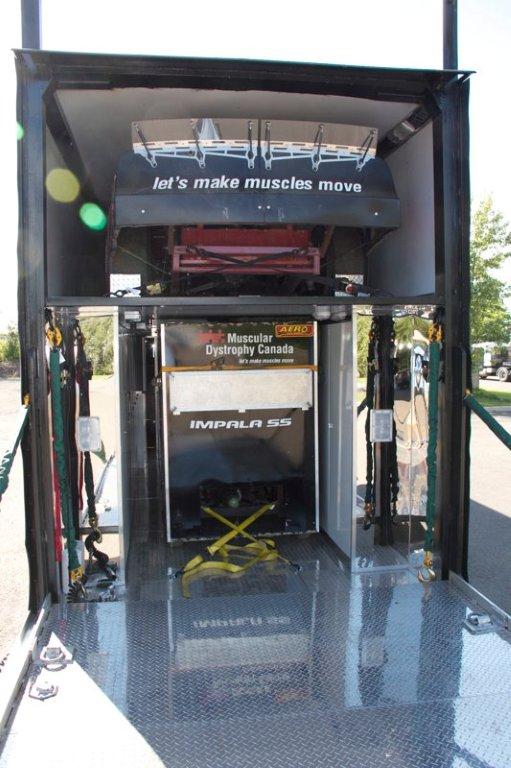

     Maritime Hydraulic 8000lb lift gate with flip ramp 240V 5hp electric/ hydraulic motor with cushion valve

     Gate: Aluminum frame work with 1/4" Aluminum deck

     49.5" upper deck   6' work shop ceiling height

     Steel frame construction for conversion


     ..050 Aluminum sides with .038 mirror stainless trim on basement and top rail

     17" tires with Aluminum Buds on outside

     40k Hendrickson Air ride Suspension

     3" and 4" Steel Cross members on 12" spacing

     1 3/8 " solid hardwood floor with 1/8 aluminum checker cover

     10000 watt gas generator   120v /240v under mounted for noise reduction in Living Quarters

     3 way operation Gas/Electric/12v (same as any RV)

     5000w HD fan cooled inverter with (12 hrs reserve)

     100 Gallon fresh water at front nose compartment

     4- 50lb propane tank bank at front nose compartment

     75 Gallon Black water storage tank under mounted

     Air Ride over ride switch valve for raising trailer up 8" for basement clearance in low pit areas

     LED lighting exterior with crash lights

     33'.7 upper deck (2 car space super late models comfortable)

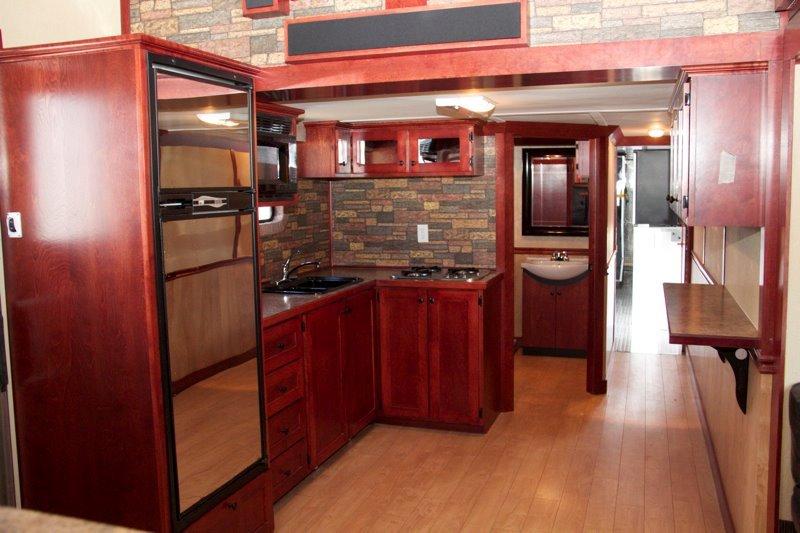

Living Quarters

     Sleeps 4 adults on top of Bedroom

     Sleeps 2 in Master Bedroom

     Sleeps 2 children in Slide out dinette

     Sleeps 2 on Fold down sofa

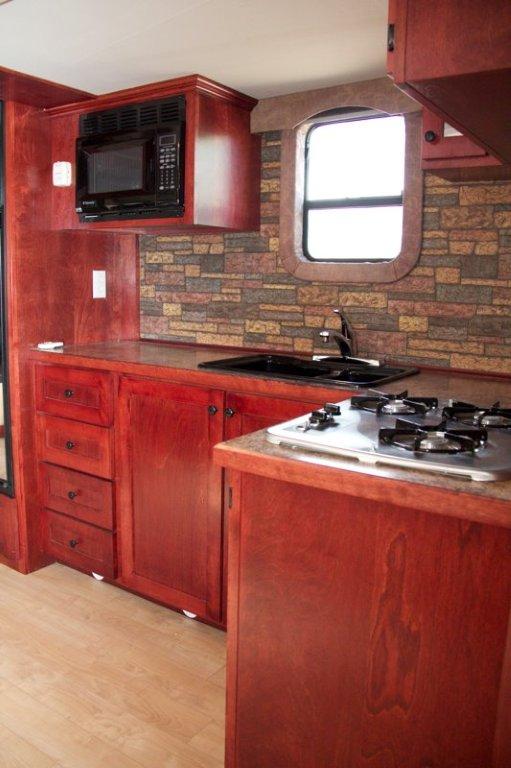

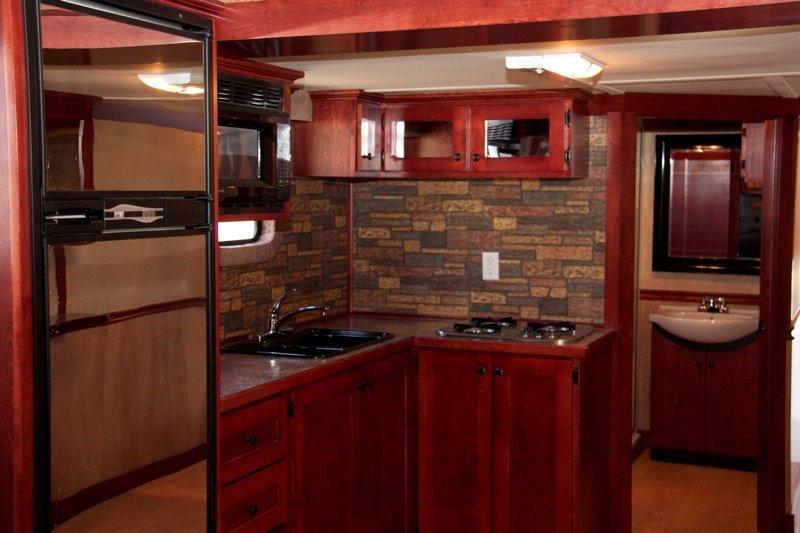

     3way fridge

     Gas Stove

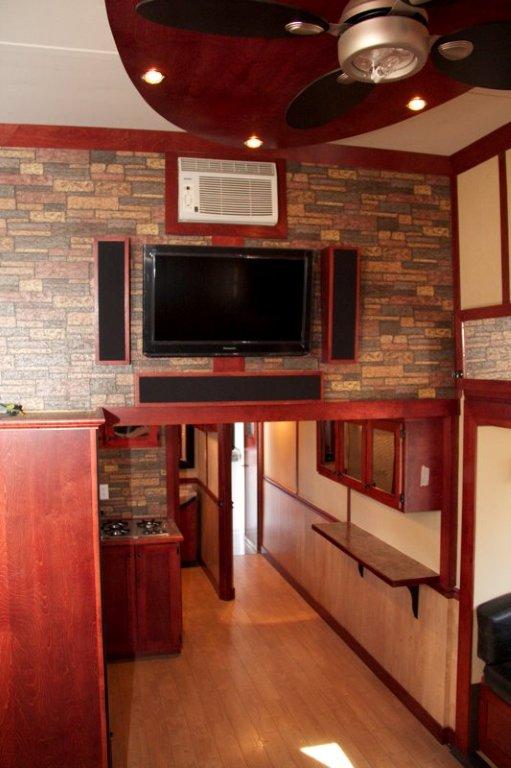

     Flat Screen with surround sound

     Double sink

     3/8 veneer plywood venial covered for long durability accented with cherry birch slats

     Custom cabinets with solid cherry birch finish

     Laminate birch mix floor throughout

     Flip down suitcase storage above dinette

     6' slide out dinette 12 V gear motor (RV)

     Remote control Air conditioning  & Ceiling Fan

     Bar counter with drink holders

     Food prep counter across from Kitchen

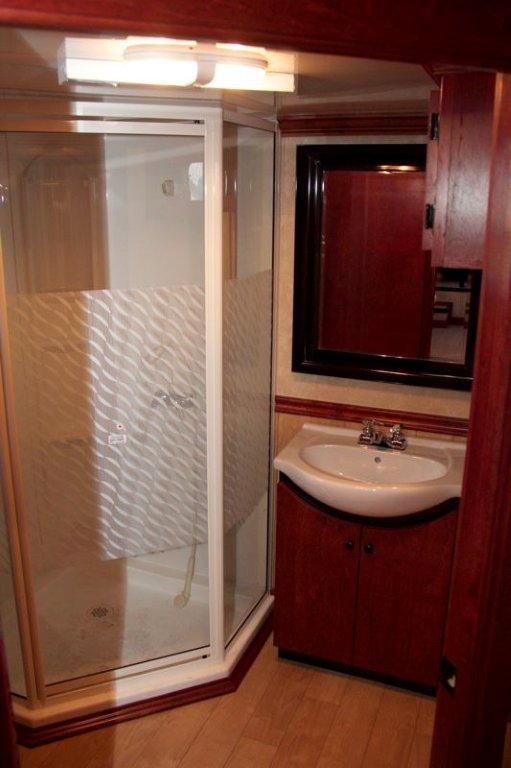

     Full very spacious bathroom with stand up shower

     Hot water 10 gallon 110v or Electric

     Separate Living Quarters side entrance and hallway pass through to work shop

     12v and 110 lighting

     Pull down privacy shades on every window

     Lots of cabinet storage

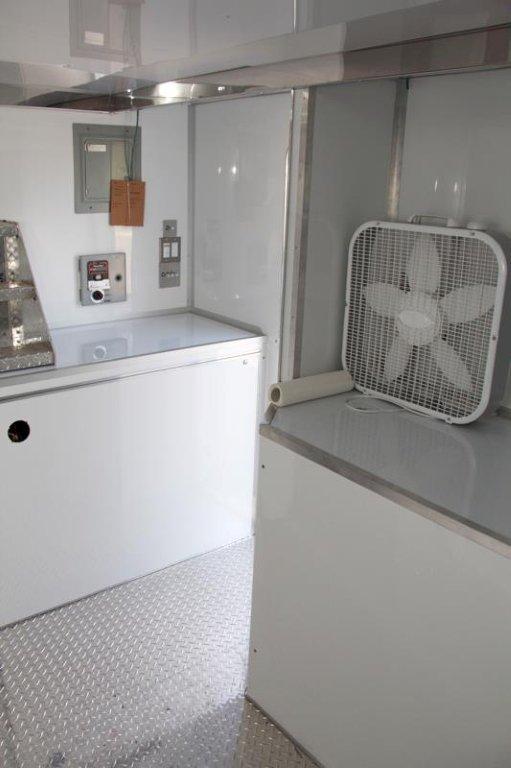

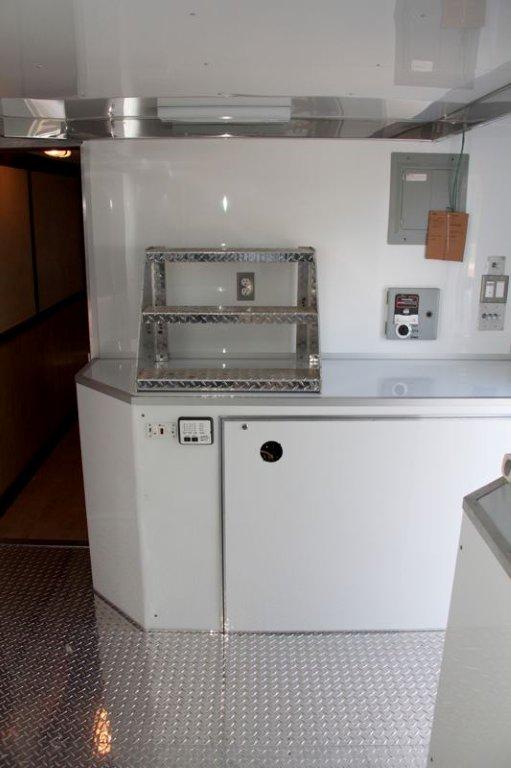

Work Shop

     2 work benches 1/2" HDPE white plastic counter tops

     Separate entrance

     15 gallon generator fuel storage

     4 110v plugs in shop and 2 at rear gate

     On Board nitrogen

     Motion automatic controlled light switches

     12 cabinets

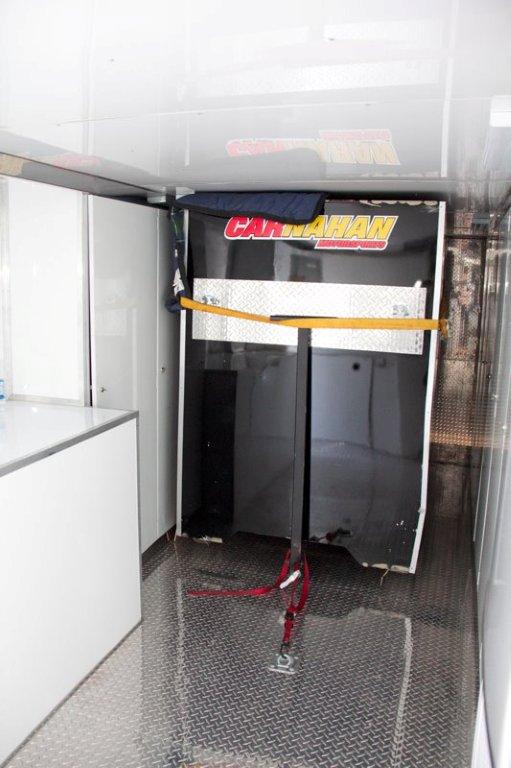

     Tie downs for pit box or buggy

     2 emergency rear lights for lighting up pit area

     .50 aluminum liner with stainless trim

     aluminum checker floor
